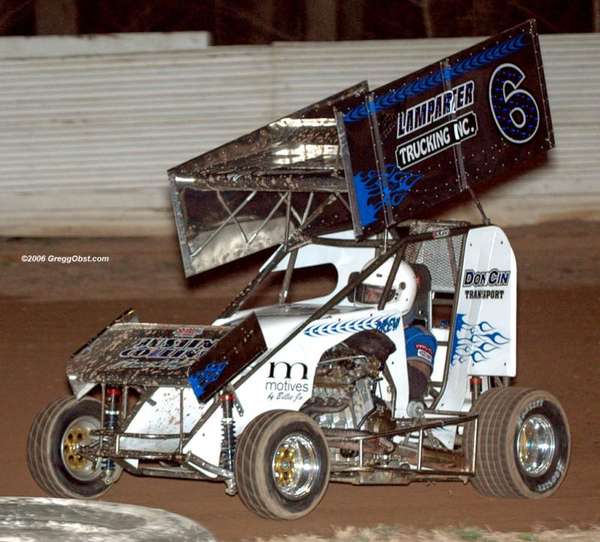

   Drew Heistand the Linda's Speedway 2006 600 Champ!

                              In his 2007 King 600

2008 600 Deluxe Roller w/ adjustable wheel base:

Includes:

  • We have designed the frame to be able to change the wheel base depending on
  •          the size of the track your racing.
  • New  - We have eliminated the need for a chain tensioner to free up the chassis.
  • New Sprint Design 4130 Frame, paint ready w/all tabs & brackets - four torsion or coil front
  •          and torsion rear.
  • Fiberglass hood w/ scoop and front panels under nose wing for more downforce
  • Tail tank assembly, body side panels, engine panels and floor pan
  • Complete front axle assembly w/bolt on aluminum axle brackets
  • 52"splined rear axle assembly complete w/floater brake, double bearing birdcages, and chain guide
  • Four ARS aluminum body Twin Tube shocks
  • Four torsion arms, stops and bars, (coil over front optional)
  • W-Link assembly
  • Stiletto rack and pinion mounted to the chassis
  • Upper & lower steering shaft w/13" Sweet steering wheel & quick release
  • Swedged aluminum radius rod set w/F & K rod ends
  • Throttle & brake pedal assemblies
  • Complete brake system w/Wilwood CNC Caliper, New MCP billet master cylinder & braided hose
  • New Fuel Safe 16 gallon tail tank assembly
  • 2 Front Weld Three piece wheels w/ Weld Billet centers
  • 2 Rear Weld three piece wheels w/ Weld Billet centers w/ beadlocks
  • American Racer or Hoosier Tires (any compound & size)
  • New Internal Slider 12' sq. Wing (same design as Sprint Car) by Wing Dynamics
  • New sprint style top wing mounts to clean up the under side of wing
  • Kirkey high back sprint seat w/upholstrey
  • Stainless Bumpers & nerfs
  • Heavy duty shift cable and lever
  • Simpson 5 point belts w/choice of colors
  • Chassis Set-Up Guide w/Technical support ............................................$7995.00

Options:

  • Front Sway Bar Assembly...................................................................... $375.00
  • ARS Gas Charged shocks....................................................................... $320.00
  • ARS Rebound Adjustable Gas Shock - each................................................$225.00
  • ARS Double Adjustable Gas Shock - each..................................................$375.00
  • 600cc Radiator, front mount w/ tray........................................................$379.00
  • 600cc Radiator, rear mount....................................................................$299.00
  • Nose Wing w/ mounts............................................................................$125.00
  • Optional left side vertical elbow bar..........................................................$100.00
  • Each additional beadlock........................................................................$  89.00
  • Body in White (powder coated aluminum - other colors available)...................$299.00
  • Carbon Fiber body panels ..................................................................Call for pricing
  • Assembly of rolling chassis......................................................................$400.00
  • *Prices subject to change without notice



______________________________________________________________________________________________________

----------------------------------------------------------------------------------------------------------------------------------------------



2008– 600 Converson Kit



Kit Includes:

  • New Sprint Design 4130 Frame, paint ready w/all tabs & brackets (pictured above)
  • Fiberglass hood w/ scoop. all body side panels, engine panels and floor pan and all fasteners
  • Direct steering shaft w/ welded u-joints

  • Torsion and steering bushings

  • Front and rear torsion arms

  • Four torsion stops or two stops and two coil over kits

  • Left and right birdcage assemblies

  • W-Link assembly

  • Stainless bumpers & nerfs

  • Swedged radius rods set

  • Front axle tube w/ axle brackets

  • Body in White

  • Price .........................................................................................................$3500

  • **Prices subject to change without notice

----------------------------------------------------------------------------------------------------------------------------------------------

______________________________________________________________________________________________________________________

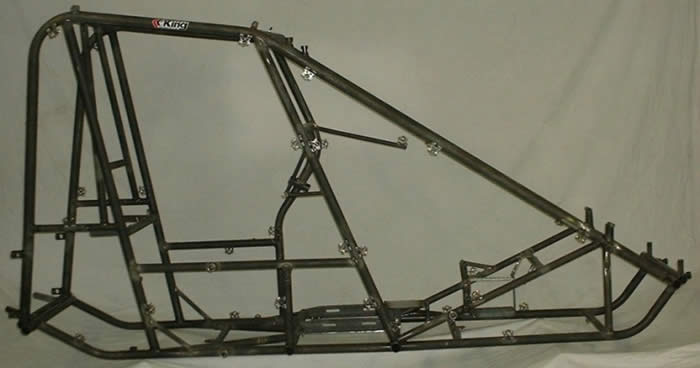

       08 600 Bare Frame - Designed exactly like a full size sprint car.
